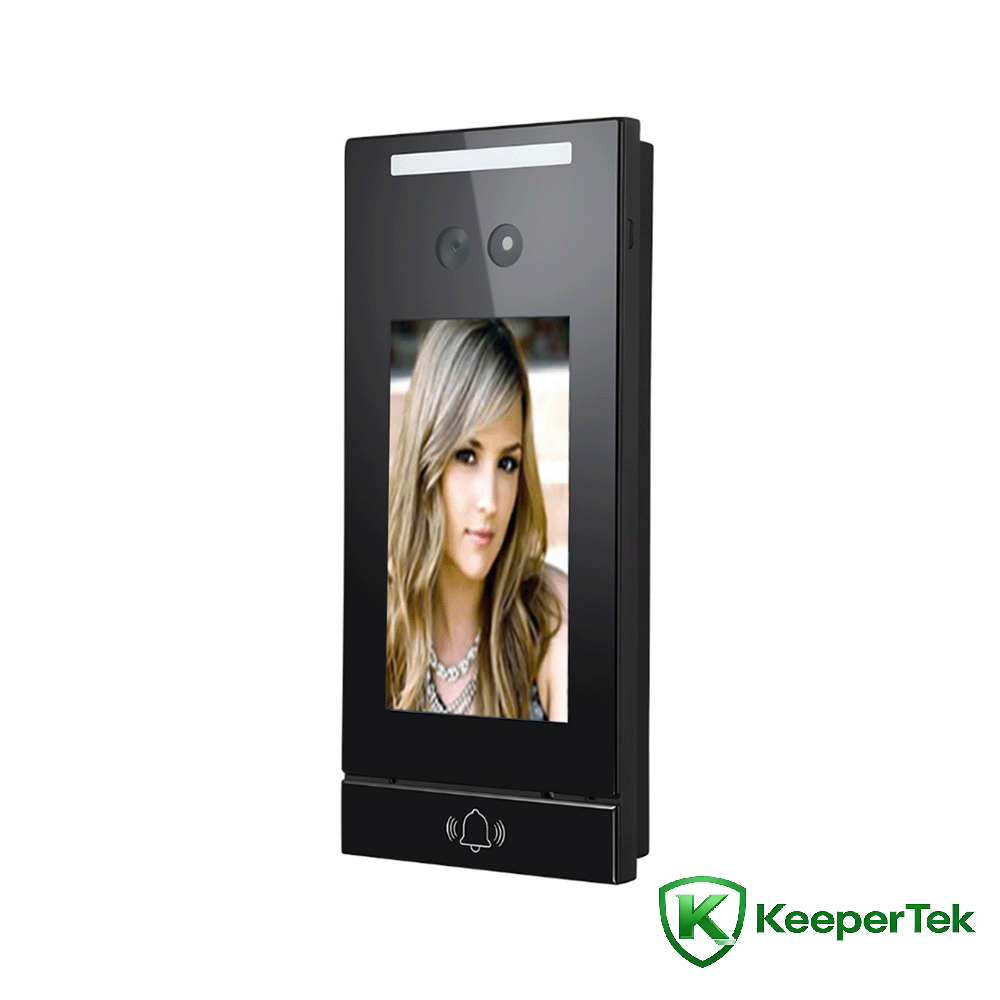

Face recognition machine

5inch vanhu Face zivisa brush Kadhi yakabatanidzwa muchina KT-FR004

Technical parameters

processor Domestic dual-core processor + 1G ndangariro + 8G EMMC

operating system Linux inoshanda system

storage Tsigira TF kadhi kuchengetedza (kusarudza)

Kamera Binocular, 2.1 miriyoni inoshanda pixels, 1920*1080

Imaging device 1/2.8" Progressive Scan CMOS

Swipe kadhi module Inotsigira LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE akawanda mwero, inotsigira kusvika ku150Mbps yekurodha mwero, uye 50Mbps yekurodha mwero.

Wifi module Optional, 2.4GHz WiFi SoC chip, yakabatanidzwa IEEE 802.11b/g/n baseband uye RF dunhu, yakakura 72.2Mbit/s yemuviri layer rate

mukurukuri Yakajairwa kumisikidzwa, yekutamba yezwi zvemukati inogona kugadzirwa

Identification urefu 1.2 ~ 2.3 mamita, kona inogadziriswa

kuremerwa kure 0.5 ~ 1.5 mamita

face angle 30 madhigirii kuruboshwe uye kurudyi, 30 madhigirii kumusoro uye pasi

nguva yekuzivikanwa Pasi pe 0.5 seconds

kuchengetedza kukwanisa 80,000 zvipfupi zvinyorwa

face capacity 10,000 mapepa

Mhando dzemakadhi anogona kutsvaira 13.56MHz, inotsigira Mifare S50, S70 makadhi, ultralinght makadhi, NTAG makadhi, DESFire D21, D41, D81, asiri-anobata CPU makadhi

Simba rekuisa DC12V/2A

network interface 1 RJ45 10M/100M adaptive Ethernet port, customizable Gigabit network port

Wiegand interface 1 Wiegand interface yakabuda, 1 Wiegand interface yekupinda

Alarm interface 1 yekuisa alarm yemoto, 1 alarm kubuda

Door sensor interface 1 chiteshi musuwo sensor interface yekupinda

Vhura musuwo wekushandisa 1 musuwo wekuvhura interface yekupinda

bhero remusuwo 1 bhero repamukova rakabuda

mukova wekiyi interface 1 chiteshi chesuwo chekuvhara interface yakabuda

Kukurukurirana interface 1 chiteshi RS485 kutaurirana interface

kamera Binocular camera, all-glass lens, chiedza chinooneka uye pedyo-infrared, inotsigira kuonekwa kwemuviri mhenyu

Mapikisheni anoshanda 2.1 miriyoni inoshanda pixels, 1920 * 1080

kujekesa zvishoma Ruvara 0.01Lux @F1.2 (ICR); dema nechena 0.001Lux @F1.2 (ICR)

chiratidzo-kune-ruzha reshiyo ≥50db(AGC DZIMA)

yakakura dynamic range 120db, ISP algorithm chikamu kuratidzwa kwechiso

vhidhiyo encoding H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding

kushanda tembiricha-20℃ - +60℃

Kushanda humidity 0 ~ 90% hunyoro hunyoro, hapana condensation

Equipment power 15W(MAX)

Munyu wekupfapfaidza mwero Rp level 6 uye pamusoro

antistatic Bata ± 6KV, mhepo ± 8KV

powered by DC12V/2A

Dziviriro level IP42

Screen specifications 5-inch yakakwirira-tsanangudzo IPS skrini

Equipment size 205 (kureba) * 95 (kufara) * 24.5 (ukobvu) mm

Features

Tsigira binocular mhenyu kuona muviri

Inotsigira kutariswa kwechiso uye kuratidzwa kwevanhu vanofamba munzvimbo dzakasimba dzekudzokera shure

Yakasarudzika yekuzivikanwa kumeso algorithm, inonyatso ziva zviso, nguva yekuziva kumeso iri pasi pe0.5s.

Yakavakwa-mumba CPU

Uchishandisa LINUX inoshanda sisitimu, iyo system yakagadzikana

H.265 encoding format video stream yakabatana zvakananga neNVR nemimwe midziyo yekuchengetedza kuburikidza neONVIF protocol uye GB28181 protocol.

Inotsigira kuchengetwa kwenzvimbo muTF kadhi, nekuenderera mberi kwekuchengetwa kwemifananidzo kwegore 1 uye mavhidhiyo emwedzi 1 kana kupfuura (zvichienderana nekugona kweTF kadhi yakasarudzika)

Zvinoreva kumhanya nguva pakati pekutadza MTBF＞50000h

Inotsigira zviuru gumi+ zvekufananidza maraibhurari uye 80,000 marekodhi ekuzivikanwa.

Rich interface protocol, inotsigira TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocol pasi peWindows/Linux nemamwe mapuratifomu.

Kushanda tembiricha: -20 ℃- +60℃

Indoor IP42 isina mvura uye isina guruva

Tsigira anti-tamper alarm

Host yakavakirwa-mukati IC kadhi muverengi

Inotsigira maikorofoni yekuisa odhiyo uye mutauri anobuda odhiyo

Yakapfuma hardware interfaces (I/O, WG26, WG34, RJ45, sensor yemusuwo, bhero regonhi, kuvhurwa kwegonhi, alarm, RS485)

5-inch IPS yakazara-inoona HD kuratidza, hapana smear kana kunonoka mumifananidzo

Kuwana otomatiki uye otomatiki chena chiyero inobvumira iyo yechokwadi ruvara rwechifananidzo kudzoreredzwa nezvisikwa

Yakavakwa-mukati dema mwenje nhanho sensor yakatsaurirwa kutariswa kwevhidhiyo, kunyatsozivikanwa kwakaderera-mwenje kucherechedzwa.

3D kudzikisa ruzha uye fog yekupinda tekinoroji inoita yekutarisa mifananidzo iri pasi pekuvhenekera kwakaderera kujeka uye kutsanangurwa zvakanyanya.

Tsigira kodhi rwizi uye ini ndinoronga kupindirana marongero

Tsigira kuvharika kwechikamu chevhidhiyo nzvimbo

Tsigira ROI encoding

Otomatiki chena chiyero, bhuku chena chiyero chiripo

Tsigira yakanyanya kuratidzwa nguva yekuseta

Tsigira nharembozha yekutarisisa marongero

Tsigira 2D ruzha kuderedza uye 3D ruzha kuderedza

Inotsigira kurekodha nguva yenguva uye yekurodha nzira marongero

Inotsigira kupenya kwevhidhiyo, kusiyanisa, hue, saturation, uye gamma kugadzirisa

Tsigiro yekuseta iyo yakanyanya otomatiki kuratidzwa nguva

Inotsigira kuratidzwa kwehungwaru kumeso uye hungwaru hwekusimudzira marongero
