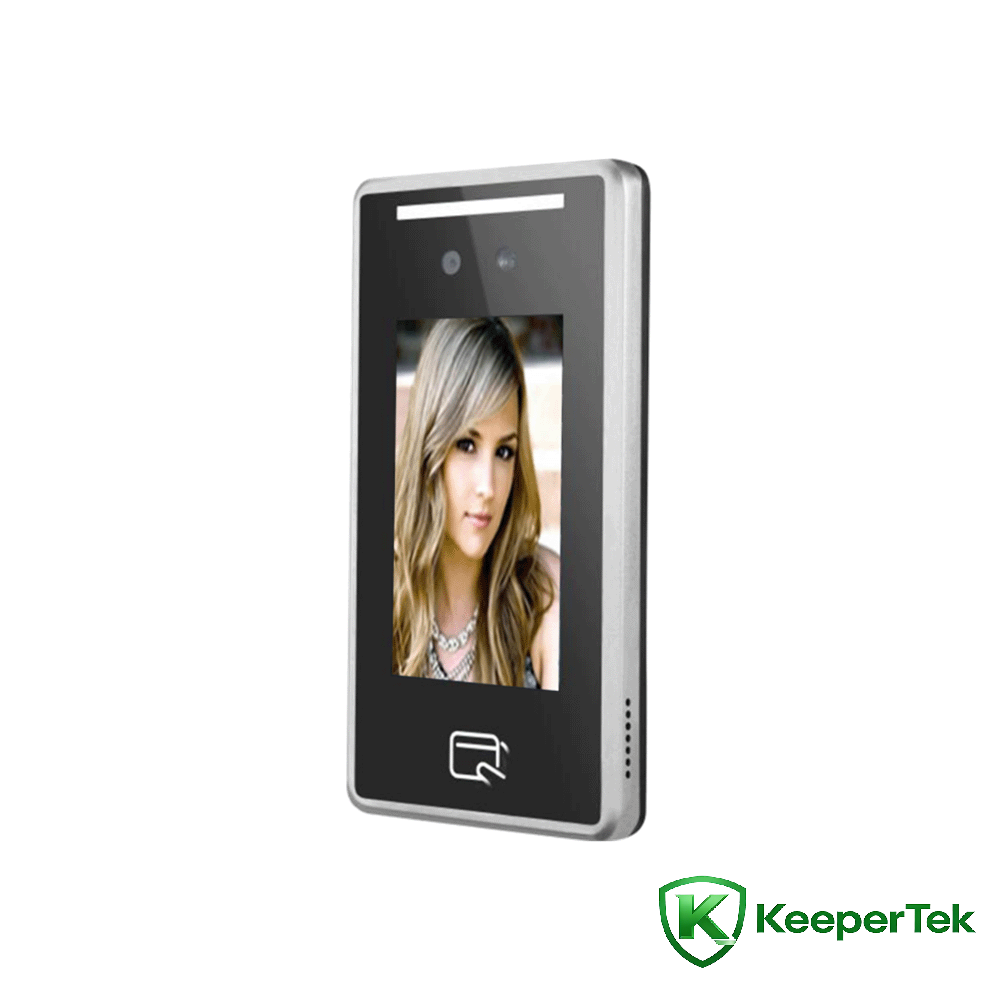

Face recognition machine

4.3inch vanhu Face zivisa brush Kadhi yakabatanidzwa muchina KT-FR003

Technical parameters

Processor: Dual-Core ARM Cortex-A7, @1.0GHz

Kuchengetedza: RAM: 256MB ROM: 8GB

Operating system: Linux inoshanda system

Lens: 4.32mm yakatarisa kureba

Kadhi swiping module: 13.56MHz yakakwirira-frequency kadhi swiping module, inotsigira ISO/IEC 14443 TypeA, inotsigira kuverenga IC makadhi.

Ethernet: 100M Ethernet port, inoenderana neIEEE802.3/802.3u yakajairwa, inotsigira IPV4 uye IPV6 protocol

Wifi module: 2.4GHz single-frequency WiFi kutaurirana, inotsigira 802.11 b/g protocol, yakakura chiyero 54Mbps

Bluetooth module: BT 4.2 Modulation nzira: DPSK, DQPSK, GFSK Transmission rate: 1Mbps ~ 3Mbps

Chidzitiro: 4.3-inch IPS LCD skrini

Bata: Capacitive kubata

Mutauri: inogadziriswa ruzha ruzha, simba 1W

Kuzivikanwa kureba: 0.3 ~ 1.5 metres

Face angle: 30 madhigirii kuruboshwe uye kurudyi, 30 madhigirii kumusoro uye pasi

Kuzivikanwa nguva: isingasviki 0.5 masekondi

Kugona kwechiso: 1000

Rekodha huwandu: 70,000 zvinyorwa

Simba rekuisa: DC12V/2A

Network interface: 1 100M Ethernet port

Wiegand interface: 1 Wiegand kubuda

Alarm interface: 1 chiteshi alarm yekupinda

Door sensor interface: 1 gonhi sensor yekupinda

Door rekuvhura interface: 1 gonhi rekuvhura kupinza

Kukurukurirana interface: 1 RS485 kutaurirana interface

USB interface: 1 USB2.0 Rudzi rweA interface

Kamera: Binocular kamera, chiedza chinooneka uye pedyo-infrared, inotsigira kuonekwa kwemuviri mhenyu

Mapikisheni anoshanda: 2.1 miriyoni inoshanda pixels

Kupenya kudiki: ruvara 0.01Lux @F1.2 (ICR); dema nechena 0.001Lux @F1.2 (ICR)

Chiratidzo-ku-ruzha reshiyo: ≥50db (AGC KUDZIMWA)

Wide dynamic range: 100db, ISP algorithm chikamu kuratidzwa kwechiso

Kushanda tembiricha: -10 ℃ kusvika +50℃

Kushanda humidity: 10% ~ 90% hunyoro hunyoro, hapana condensation

Equipment simba: 10W (MAX)

ESD: kubata ± 4KV, mhepo ± 6KV

Chiyero chekudzivirira: IP42

Simba rekushandisa: DC12V/2A

Chigadzirwa saizi: 173.5 * 90.0 * 24.0 (mm)

Features

Tsigira binocular mhenyu kuona muviri

·Inotsigira kutariswa kwechiso uye kuratidzwa kwevanhu vanofamba munzvimbo dzakasimba dzekudzokera shure

·Yakasarudzika yekuzivikanwa kumeso algorithm, inonyatso ziva zviso, nguva yekuziva kumeso iri pasi pe0.5s.

·Yakavakwa-mumba CPU

·Uchishandisa LINUX inoshanda sisitimu, iyo system yakagadzikana

·Zvinoreva kumhanya nguva pakati pekutadza MTBF＞50000h

·Kushanda tembiricha: -10 ℃- +50℃

·Tsigira kumberi-yekupedzisira michina kumisikidza, kunyoreswa kwevashandi, ruzivo rwemubvunzo uye mamwe maoperation

·Yakapfuma hardware interfaces (USB2.0, mukova sensor yekupinda, yekuvhura gonhi rekuisa, alarm yekuisa, Wiegand kubuda, nezvimwewo)

·4.3-inch capacitive touch screen, hapana mufananidzo smear kana kunonoka
