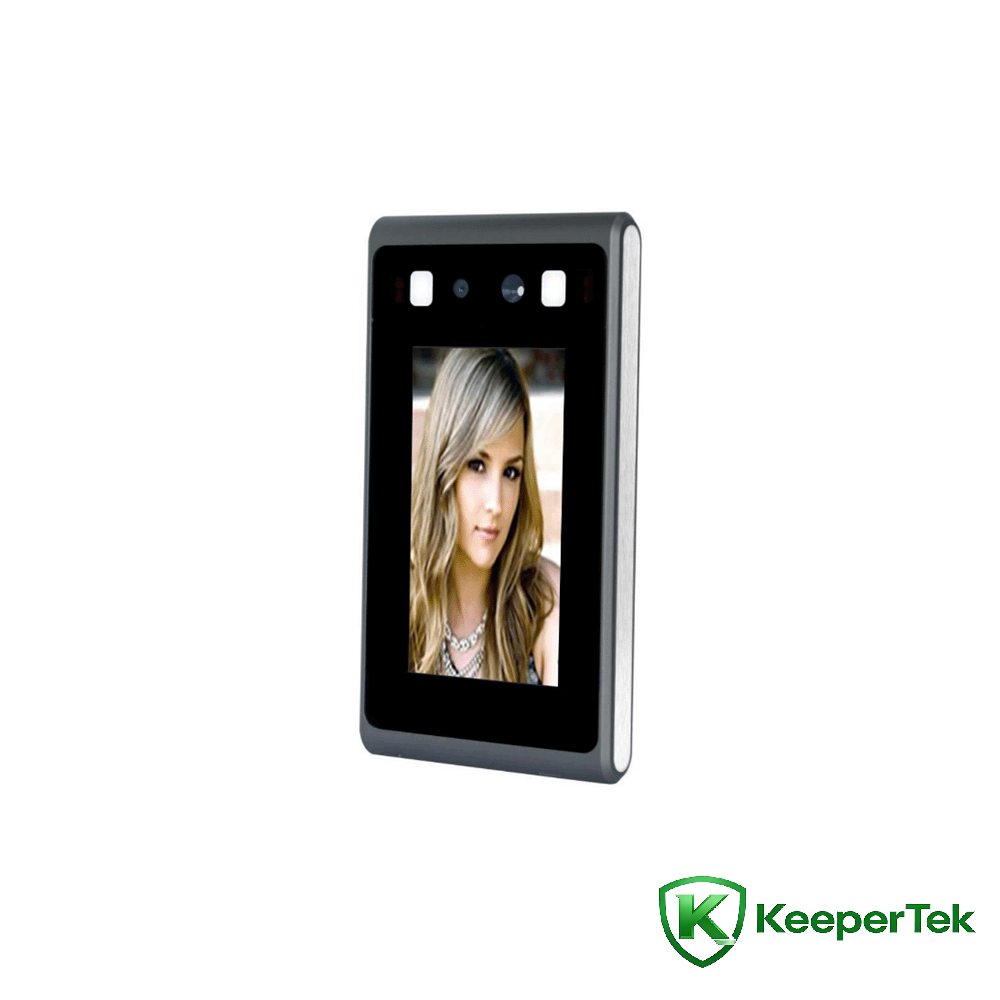

Face recognition machine

4.3inch vanhu Face zivisa brush Kadhi yakabatanidzwa muchina KT-FR002

Technical parameters

Processor: Dual-Core ARM Cortex-A7, @1.0GHz

Operating system: Linux inoshanda system

Kuchengeta: Tsigira TF kadhi kuchengetedza (kusarudza)

Kamera: Binocular, 2.1 miriyoni inoshanda pixels, 1920 * 1080

Kufungidzira mudziyo: 1/2.8" Progressive Scan CMOS

Lenzi: 4.5mm

Kadhi swiping module: sarudzo, 13.56MHz, ID kadhi serial nhamba, Mifare, NFC

Wifi module: IEEE 802.11b/g/n chiyero, inotsigira 2.4GHz frequency band, kumhanya siyana 1Mbps-150Mbps

Bata skrini: rutsigiro, capacitive multi-touch skrini

Mutauri: zvakajairika, zvemukati zvekutamba inzwi zvinogona kugadziridzwa

Kuzivikanwa kureba: 1.2 ~ 2.2 metres, kona inogadziriswa

Kuzivikanwa kureba: 0.3 ~ 1.5 metres

Face angle: 30 madhigirii kuruboshwe uye kurudyi, 30 madhigirii kumusoro uye pasi

Kuzivikanwa nguva: isingasviki 0.5 masekondi

Kuchengetedza kugona: 60,000 snapshot zvinyorwa

Kugona kwechiso: 20,000

Simba rekuisa: DC12V/2A

Network interface: 1 RJ45 10M/100M inogadzirisa Ethernet port

Wiegand interface: 1 Wiegand interface inobuda, 1 Wiegand interface yekupinda

Alarm interface: 1 yekuisa alarm yemoto, 1 alarm kubuda

Door sensor interface: 1 gonhi sensor interface yekupinda

Door rekuvhura interface: 1 musuwo wekuvhura interface yekupinda

Doorbell interface: 1 bhero remusuwo rekubuda

Door kukiya interface: 1 gonhi rekiyi interface yakabuda

Kukurukurirana interface: 1 RS485 kutaurirana interface

Kamera: Binocular kamera, ese-girazi lens, chiedza chinooneka uye pedyo-infrared, inotsigira kuonekwa kwemuviri mhenyu.

Mapikisheni anoshanda: 2.1 miriyoni inoshanda pixels, 1920 * 1080

Kupenya kudiki: ruvara 0.01Lux @F1.2 (ICR); dema nechena 0.001Lux @F1.2 (ICR)

Chiratidzo-ku-ruzha reshiyo: ≥50db (AGC KUDZIMWA)

Kugadzirisa skrini: 480 * 272

Kushanda tembiricha: -20 ℃ - +55℃

Kushanda humidity: 0 ~ 90% hunyoro hunyoro, hapana condensation

Equipment simba: 10W (MAX)

Chiyero chekupfapfaidza munyu: Rp6 kana pamusoro

Antistatic: kubata ± 4KV, mhepo ± 8KV

Simba rekushandisa: DC12V/2A

Chiyero chekudzivirira: IP42

Chidzitiro chezvimiro: 4.3-inch capacitive multi-touch screen

Zvishandiso saizi: 160 (kureba) * 88 (hupamhi) * 17 (ukobvu) mm

Features

Tsigira binocular mhenyu kuona muviri

Inotsigira kutariswa kwechiso uye kuratidzwa kwevanhu vanofamba munzvimbo dzakasimba dzekudzokera shure

Yakasarudzika yekuzivikanwa kumeso algorithm, inonyatso ziva zviso, nguva yekuziva kumeso iri pasi pe0.5s.

Yakavakwa-mumba CPU

Uchishandisa LINUX inoshanda sisitimu, iyo system yakagadzikana

Zvinoreva kumhanya nguva pakati pekutadza MTBF＞50000h

Inotsigira anosvika makumi maviri,000+ ekuenzanisa kwechiso maraibhurari uye makumi matanhatu ezviuru marekodhi ekuzivikanwa.

Kushanda tembiricha: -20 ℃-55℃

Indoor IP42 isina mvura uye isina guruva

Tsigira anti-tamper alarm

Inotsigira maikorofoni yekuisa odhiyo uye mutauri anobuda odhiyo

Yakapfuma hardware interfaces (I/O, WG26, WG34, RJ45, sensor yemusuwo, bhero regonhi, kuvhurwa kwegonhi, alarm, RS485)

4.3-inch capacitive multi-touch screen, hapana mufananidzo smear kana kunonoka
