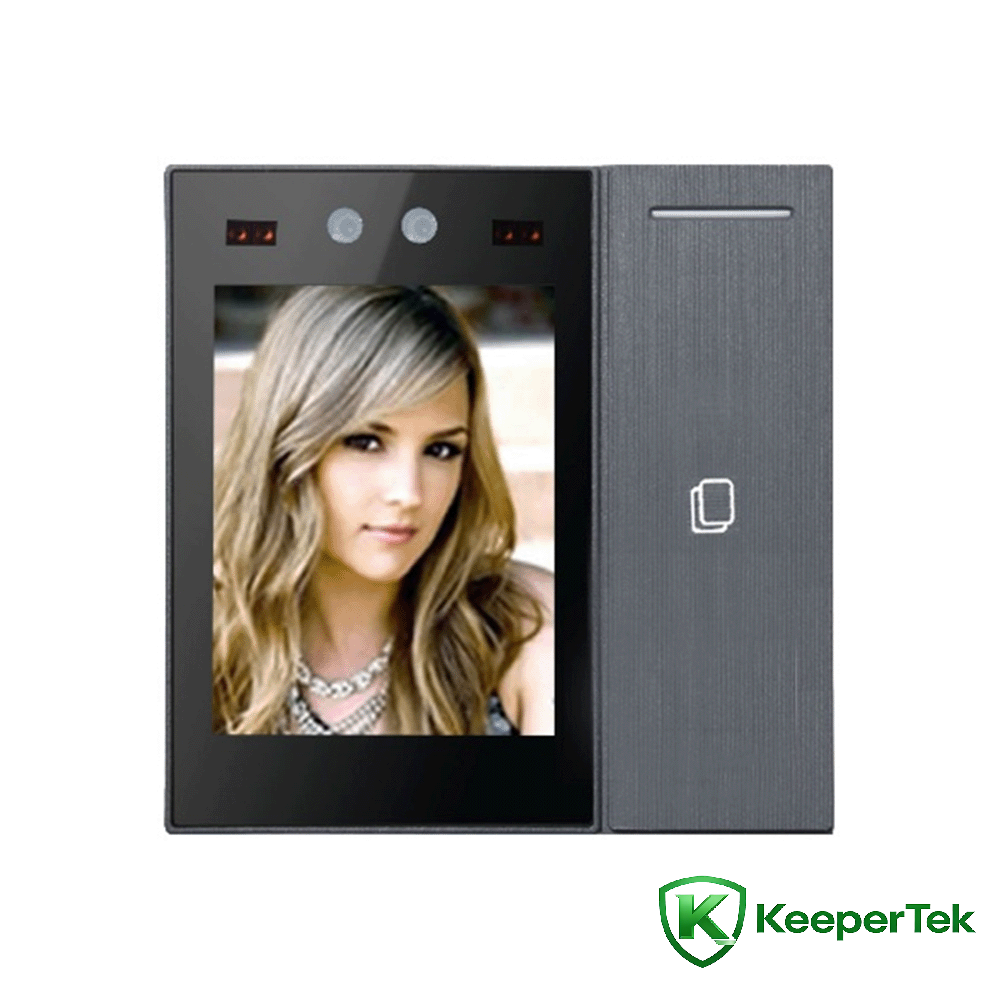

Face recognition machine

2.8One-inch face swipe kadhi muchina KT- FR001

Technical parameters

processor: High-performance ARM processor

Operating system: Linux inoshanda system

Kadhi swiping module: 13.56MHz frequency bhendi kadhi kucherechedzwa, inotsigira ISO/IEC 14443 TypeA, inotsigira sarudzo ye125KHz ID kadhi yekuziva basa.

WiFi module: 2.4GHz/5GHz WiFi SoC chip, yakabatanidzwa IEEE 802.11a/b/g/n baseband uye RF dunhu, yakanyanya downlink rate ye72.2Mbps

Ethernet: 100Mbps Ethernet port

Chiratidziro: 2.8-inch LCD skrini

Bata: Capacitive kubata

Kuzivikanwa kureba: 0.3 ~ 1.5 metres

Face angle: 30 madhigirii kuruboshwe uye kurudyi, 30 madhigirii kumusoro uye pasi

Kuzivikanwa nguva: isingasviki 0.5 masekondi

Kugona kwechiso: 2000

Rekodha huwandu: 50000

Simba rekuisa: DC12V/1A

Network interface: 1 100M Ethernet port

Wiegand interface: 1 Wiegand kubuda

Door sensor interface: 1 gonhi sensor yekupinda

Door rekuvhura interface: 1 gonhi rekuvhura kupinza

Relay interface: 1 relay kubuda

USB interface: 1 USB2.0 interface (rudzi-C)

Kamera: Binocular kamera, chiedza chinooneka uye pedyo-infrared, inotsigira kuonekwa kwemuviri mhenyu

Mapikisheni anoshanda: miriyoni imwe inoshanda pixels

Chiratidzo-ku-ruzha reshiyo: ≥50db (AGC KUDZIMWA)

Wide dynamic range: 100db, ISP algorithm chikamu kuratidzwa kwechiso

Kushanda tembiricha: -10 ℃ kusvika +50℃

Kushanda humidity: 10% ~ 90% hunyoro hunyoro, hapana condensation

Equipment simba: 10W (MAX)

Chiyero chekudzivirira: IP42

Simba rekushandisa: DC12V/1A

Chigadzirwa saizi: 86*86*17 (mm)

Features

Yakavakwa-mumba CPU

·Tsigira binocular mhenyu kuona muviri

·Kushanda tembiricha: -10 ℃- +50℃

·Uchishandisa LINUX inoshanda sisitimu, iyo system yakagadzikana

·Zvinoreva kumhanya nguva pakati pekutadza MTBF＞50000h

·Tsigira wired network kutaurirana uye WiFi kutaurirana mabasa

·Chishandiso chinotsigira kusungira kune yakangwara yekuwana kutonga uye yekupinda manejimendi chikuva nekukasira.

·Iyo saiti ine yakavakirwa-mukati kadhi swiping module kutsigira kuwedzera kweiyo ID kadhi swiping mabasa.

·Chishandiso chakavaka-mukati-mavara matatu-mavara ekuratidza marambi kuti akurumidze zvichibva pamhedzisiro yekusimbisa.

·2.8-inch capacitive touch screen, hapana mufananidzo smear kana kunonoka

·Chishandiso chinotsigira kumberi-yekupedzisira touch screen uye yemuno kupinda kune backend manejimendi, kubvunza, uye kumisikidzwa kwechishandiso.

·Yakasarudzika yekuzivikanwa kumeso algorithm, inonyatso ziva zviso, nguva yekuziva kumeso iri pasi pe0.5s.

·Muviri wemudziyo wakakwana uye unoyevedza, wakanyatsokodzera kupinda uye kubuda kwekushandisa kwemahofisi uye makamuri madiki emusangano.

·Yakapfuma hardware interfaces (USB2.0, relay, kuvhura gonhi rekuisa, gonhi sensor yekupinda, Wiegand kubuda, nezvimwewo)
