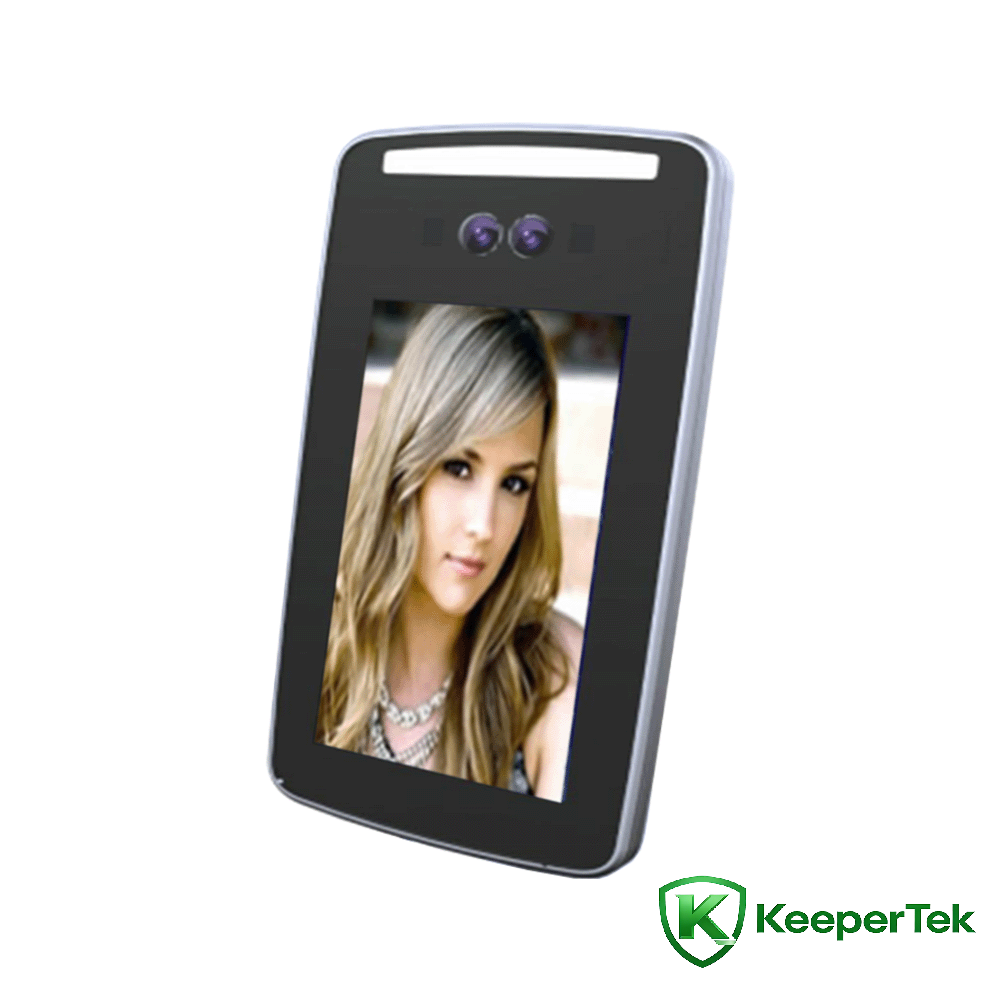

Face recognition machine

7inch vanhu Kuzivikanwa kwechiso zvese-mu-mumwe muchina KT- FR005

Technical parameters

processor: dual-core processor + 1G ndangariro + 16G EMMC

Operating system: Linux inoshanda system

Kuchengetedza: Tsigira TF kadhi kuchengetedza

Kamera: Binocular, 2.1 miriyoni inoshanda pixels, 1920 * 1080

Kufungidzira mudziyo: 1/2.8" Progressive Scan CMOS

Lenzi: 6mm

Mutauri: zvakajairika, zvemukati zvekutamba inzwi zvinogona kugadziridzwa

Kuzivikanwa kureba: 1.2 ~ 2.2 metres, kona inogadziriswa

Kuzivikanwa kureba: 0.5 ~ 1.5 metres, chinja zvichienderana nelenzi

Face angle: 30 madhigirii kuruboshwe uye kurudyi, 30 madhigirii kumusoro uye pasi

Kuzivikanwa nguva: isingasviki 0.5 masekondi

Kugona kwechiso: 20,000

Kuchengetedza kugona: 60,000 snapshot zvinyorwa

Kuchinja kunobuda: 1 switching inobuda, mamwe maGPIO ports anogona kugadzirwa

Network interface: 1 RJ45 10M/100M adaptive Ethernet port, customizable Gigabit network port

Wiegand interface: 1 Wiegand interface yekupinda, 1 Wiegand interface inobuda

USB interface: 1 USB interface semudziyo

Kukurukurirana interface: 1 RS485 interface

Kamera: Binocular kamera, chiedza chinooneka uye pedyo infrared, inotsigira mhenyu kuonekwa muviri

Mapikisheni anoshanda: 2.1 miriyoni inoshanda pixels, 1920 * 1080

Kupenya kudiki: ruvara 0.01Lux @F1.2 (ICR); dema nechena 0.001Lux @F1.2 (ICR)

Chiratidzo-ku-ruzha reshiyo: ≥50db (AGC KUDZIMWA)

Wide dynamic range: 100db, ISP algorithm chikamu kuratidzwa kwechiso

Vhidhiyo encoding: H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding

Kugadzirisa peji rewebhu: inotsigirwa

Kukwidziridzwa kwemudziyo kure: kunotsigirwa

Deployment nzira: inotsigira yeruzhinji network uye kushandiswa kweLAN

Kushanda tembiricha: -30 ℃ - +60℃

Kushanda humidity: 0 ~ 90% hunyoro hunyoro, hapana condensation

Chiyero chekupfapfaidza munyu: Rp6 kana pamusoro

Antistatic: kubata ± 6KV, mhepo ± 8KV

Simba rekushandisa: DC12V/2A

Anti-mhirizhonga level: IK06

Chiyero chekudzivirira: IP66

Simba remudziyo: 14.4W (MAX)

Zvishandiso saizi: 128 (hupamhi) * 28 (ukobvu) * 240 (kureba) mm

Features

Tsigira binocular mhenyu kuona muviri

Inotsigira kutariswa kwechiso uye kuratidzwa kwevanhu vanofamba munzvimbo dzakasimba dzekudzokera shure

Yakasarudzika yekuzivikanwa kumeso algorithm, inonyatso ziva zviso, nguva yekuziva kumeso iri pasi pe0.5s.

 Yakavakwa-mumba CPU

Uchishandisa LINUX inoshanda sisitimu, iyo system yakagadzikana

Zvinoreva kumhanya nguva pakati pekutadza MTBF＞50000h

Inotsigira 20,000 kumeso ekuenzanisa maraibhurari uye makumi matanhatu ekuzivikanwa marekodhi.

Rich interface protocol, inotsigira TCP/IP, UDP, HTTP, DNS, DHCP, MQTT protocol pasi peWindows/Linux nemamwe mapuratifomu · Kushanda tembiricha: -30℃-60℃

IP66 isina mvura uye isina guruva

 Yakavakirwa-mukati photosensitive sensor, inogadzirisa otomatiki kuzadza mwenje kusimba

Yakapfuma hardware interfaces (I/O, WG26, WG34, RJ45, RS485)

7-inch IPS yakazara-inoona HD kuratidza, hapana kuzora kana kunonoka mumifananidzo
