Anti-mhirizhonga inosimudza column

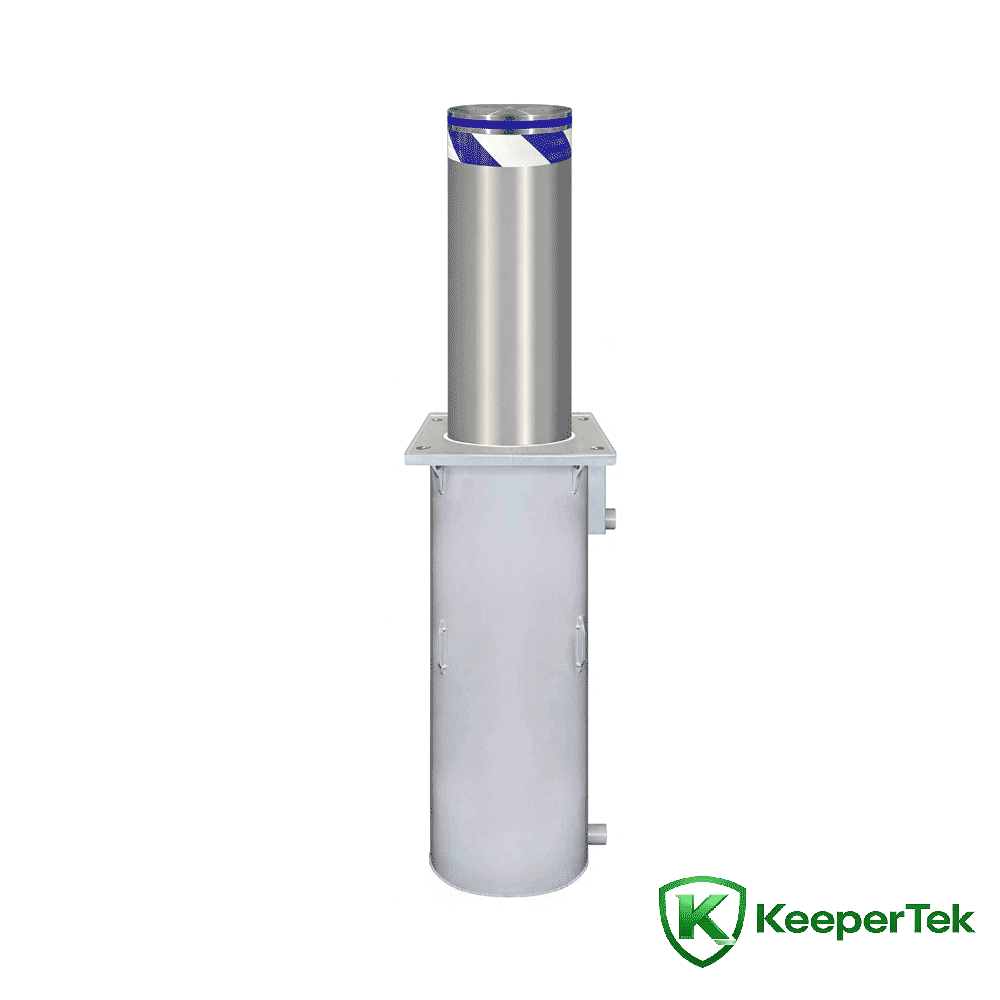

Square flange inosimudza column KT-DX04

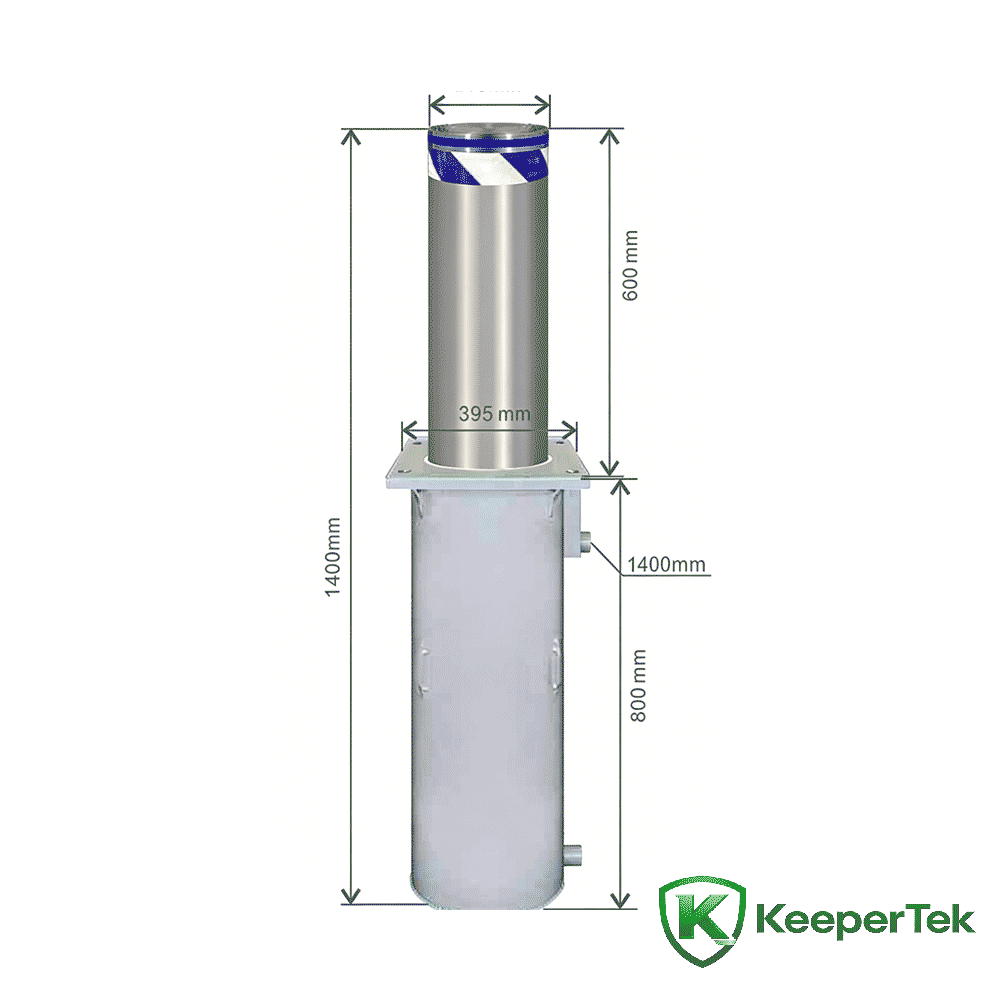

Technical parameters

Silinda dhayamita: 219mm

Silinda kureba: 600mm

Silinda ukobvu: 6mm

Cylinder zvinhu: 304 simbi isina tsvina

Kusimudza kumhanya: 2S～4S

Yakamisikidzwa bhaketi zvirevo: 335mmx335mmx800mm

Mvura giredhi: IP68

Kushanda tembiricha: -35 ℃～75℃

Flange yakatarwa: flange 335mmx335mmx ukobvu 6mm

Kugovera voltage: 220V

Simba: 300W

Yambiro zviratidzo: Ultra-yakakwirira kupenya inoratidzira firimu, mwenje we LED

Emergency function: Yakashongedzerwa neEPS yekukurumidzira magetsi uye imwe-bhatani kudzika

Kudzora nzira: Yakawedzera basa rezinesi rezinesi kucherechedzwa / moto alarm / yekuwana control system yekubatanidza

Control box/wireless remote control

Nhamba yezvinyorwa zvinotungamira: 3

Features

Inogona kushandiswa zvakajairika mushure mekumira nekufamba kwe100-ton mota.；

Mvura isingapindi giredhi IP68, inogona kuramba ichishandiswa zvakajairwa kunyangwe yanyikwa mumvura:

Chimiro chacho chakasimba uye chinogara kwenguva refu. Iyo tambo yekubuda uye yekuburitsa inogadzirwa ne4mm gobvu kabhoni simbi. Dhiramu rekunze rakagadzirwa ne 4 welded bars.；

Uchishandisa 5CM inopenya inoratidzira firimu, iyo reflectivity iri pamusoro pe90%;

Optional yakakwirira-kupenya LED yambiro mwenje bhaa zvinobudirira inovandudza husiku yambiro maitiro.

Iyo flange yepaneru inotora anti-slip pateni dhizaini, uye iyo flange ukobvu inosarudzika 10mm/6mm;

Ukobvu hweflange kumusoro kwekoramu ndeye 10mm/6mm, uye tsigiro isiri-yakajairwa inogamuchirwa kuti igadziriswe. Iyo dhayamita, ukobvu, kureba, kutaridzika, kumhanya, nezvimwe zvekoramu yekusimudza inogona kugadzirwa;

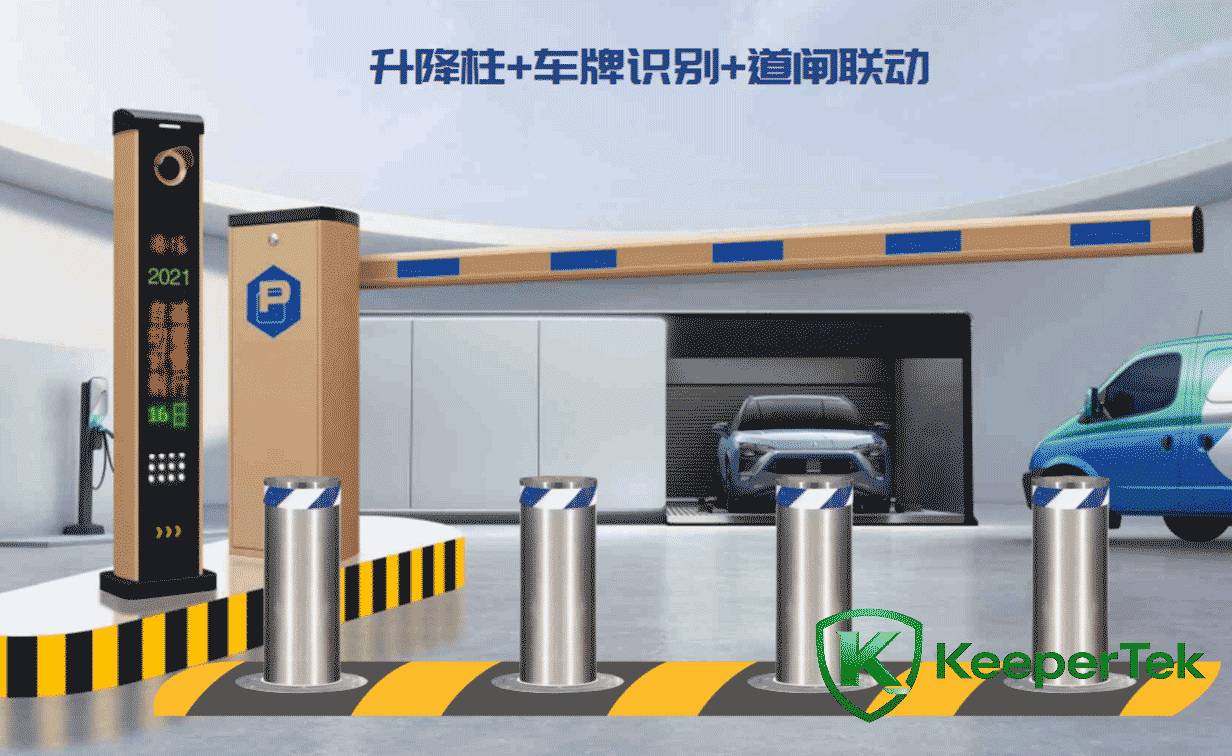

Iko kusimudza kunogona kudzorwa pamwe chete nemimwe michina yakaita serezinesi rezinesi rekuziva, zvivhariso magedhi, yekupinda kudzora, infrared, radar, pasi inonzwa, marambi emigwagwa, tidal nzira, moto alarm system, nezvimwe.；

Iyo Cloud platform management system inotsigirwa kudzora mbiru yekusimudza, uye mobile APP inogona kushandiswa kudzora kure kusimuka nekudonha kwekoramu yekusimudza.

Configuration options

Kureba: kureba 400mm, kureba 800mm, kureba 1000mm, kureba 1200mm, kureba 1500mm

Ukobvu: 8mm ukobvu, 10mm ukobvu, 12mm ukobvu, 16mm ukobvu, 20mm ukobvu

Diameter: 168mm dhayamita, 273mm dhayamita, 325mm dhayamita, vamwe
