Anti-mhirizhonga inosimudza column

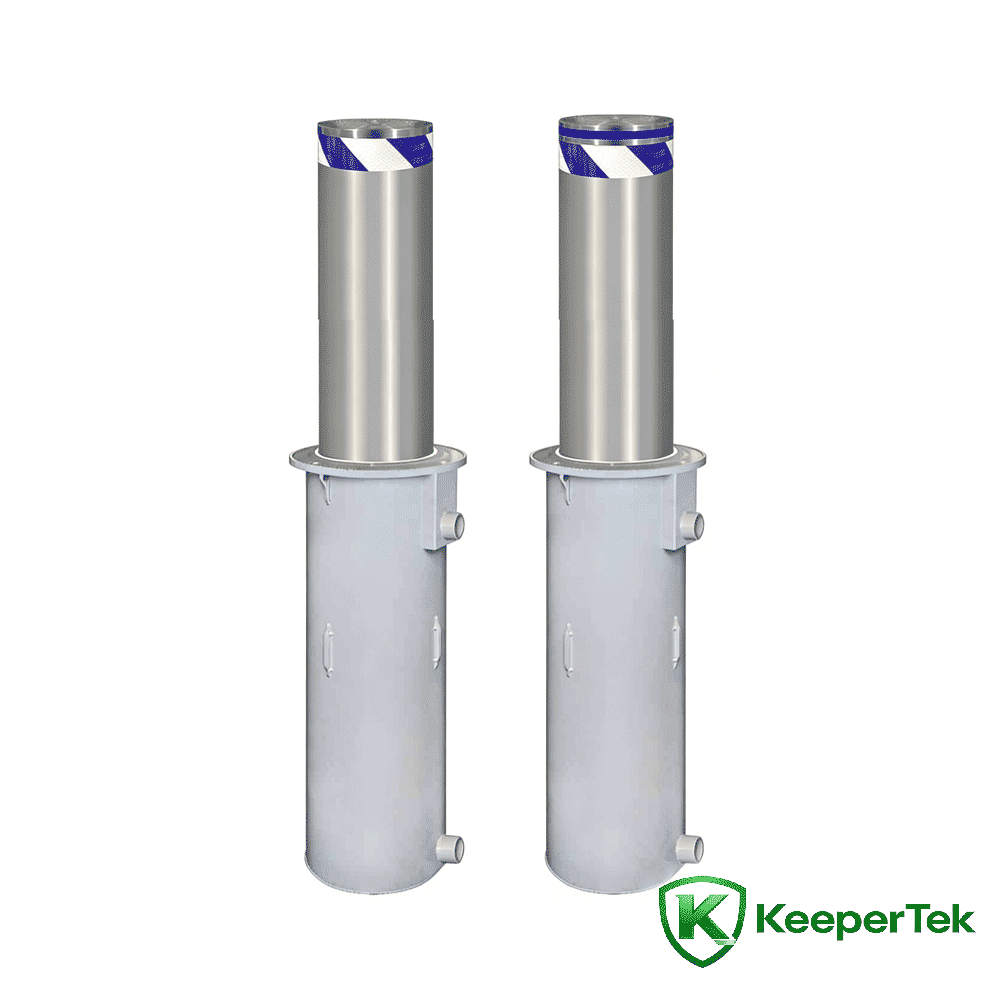

Semi-otomatiki inosimudza mbiru KT-DX03

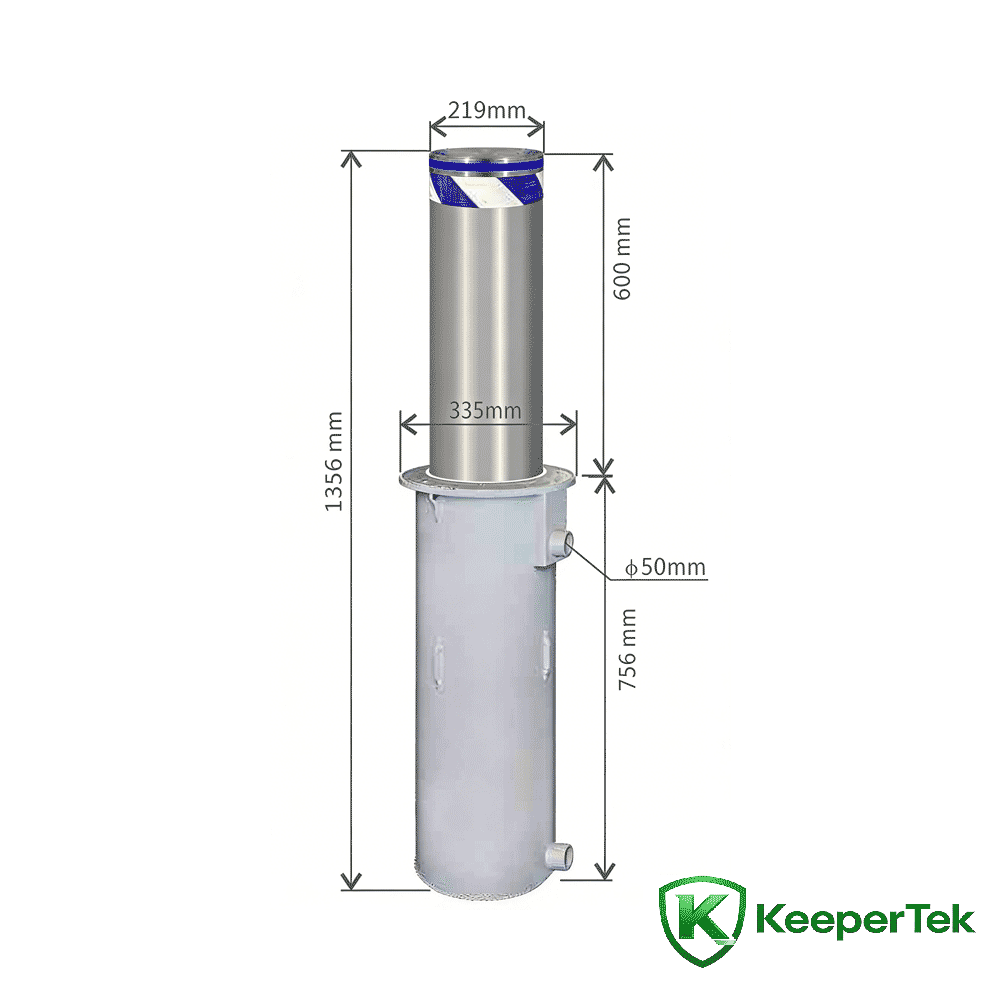

Technical parameters

Silinda dhayamita: 219mm

Silinda kureba: 600mm

Silinda ukobvu: 6mm

Cylinder zvinhu: 304 simbi isina tsvina

Yakamisikidzwa bhaketi zvirevo: 335mmx335mmx756mm

Mvura giredhi: IP68

Kushanda tembiricha: -35 ℃～75℃

Flange yakatarwa: flange dhayamita 335mm x ukobvu 6mm

Yambiro zviratidzo: Ultra-yakakwirira kupenya inoratidzira firimu, mwenje we LED

Nhamba yezvinyorwa zvinotungamira: 3

Features

Inogona kushandiswa zvakajairika mushure mekurohwa nemotokari inotakura matani masere;

Inogona kushandiswa zvakajairika mushure mekumira nekufamba kwe100-ton mota.；

Mvura isingapindi giredhi IP68, inogona kuramba ichishandiswa zvakajairwa kunyangwe yanyikwa mumvura:

Chimiro chacho chakasimba uye chinogara kwenguva refu. Iyo tambo yekubuda uye yekuburitsa inogadzirwa ne4mm gobvu kabhoni simbi. Dhiramu rekunze rakagadzirwa ne 4 welded bars.； ；

Uchishandisa 5CM yakafara inoratidzira firimu, iyo reflectivity inogona kusvika kupfuura 90%;

Optional yakakwirira-kupenya LED yambiro mwenje bhaa zvinobudirira inovandudza husiku yambiro maitiro.

Iyo flange yepaneru inotora anti-slip pateni dhizaini, uye iyo flange ukobvu inosarudzika 10mm/6mm;

Ukobvu hweflange kumusoro kwembiru ndeye 10mm/6mm;

Non-standard customization inogamuchirwa. Iyo dhayamita yese, ukobvu, kureba, kutaridzika, kumhanya, nezvimwe zvekoramu yekusimudza inogona kugadzirwa.

Configuration options

Kureba: kureba 400mm, kureba 800mm, kureba 1000mm, kureba 1200mm, kureba 1500mm

Ukobvu: 8mm ukobvu, 10mm ukobvu, 12mm ukobvu, 16mm ukobvu, 20mm ukobvu

Diameter: 168mm dhayamita, 273mm dhayamita, 325mm dhayamita, vamwe
