Anti-mhirizhonga inosimudza column

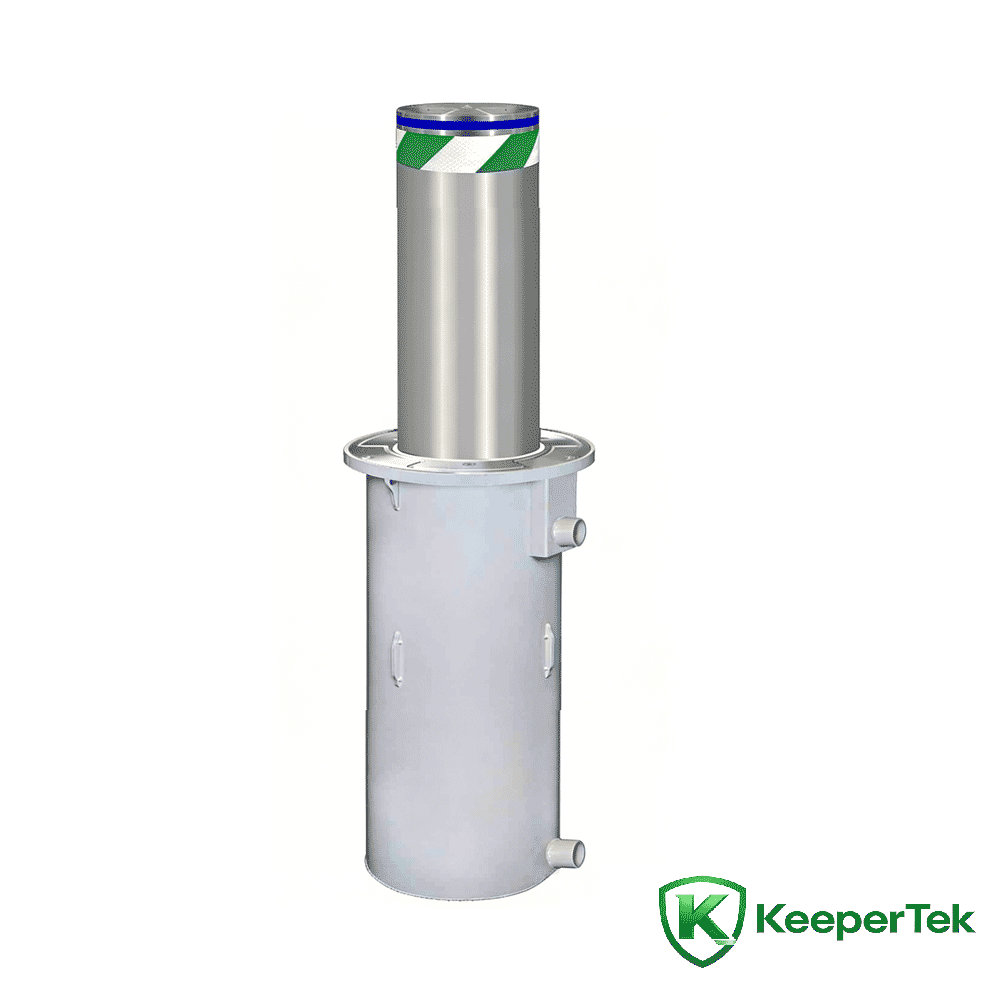

24V Low voltage pure electric lifting column KT-DX08

Technical parameters

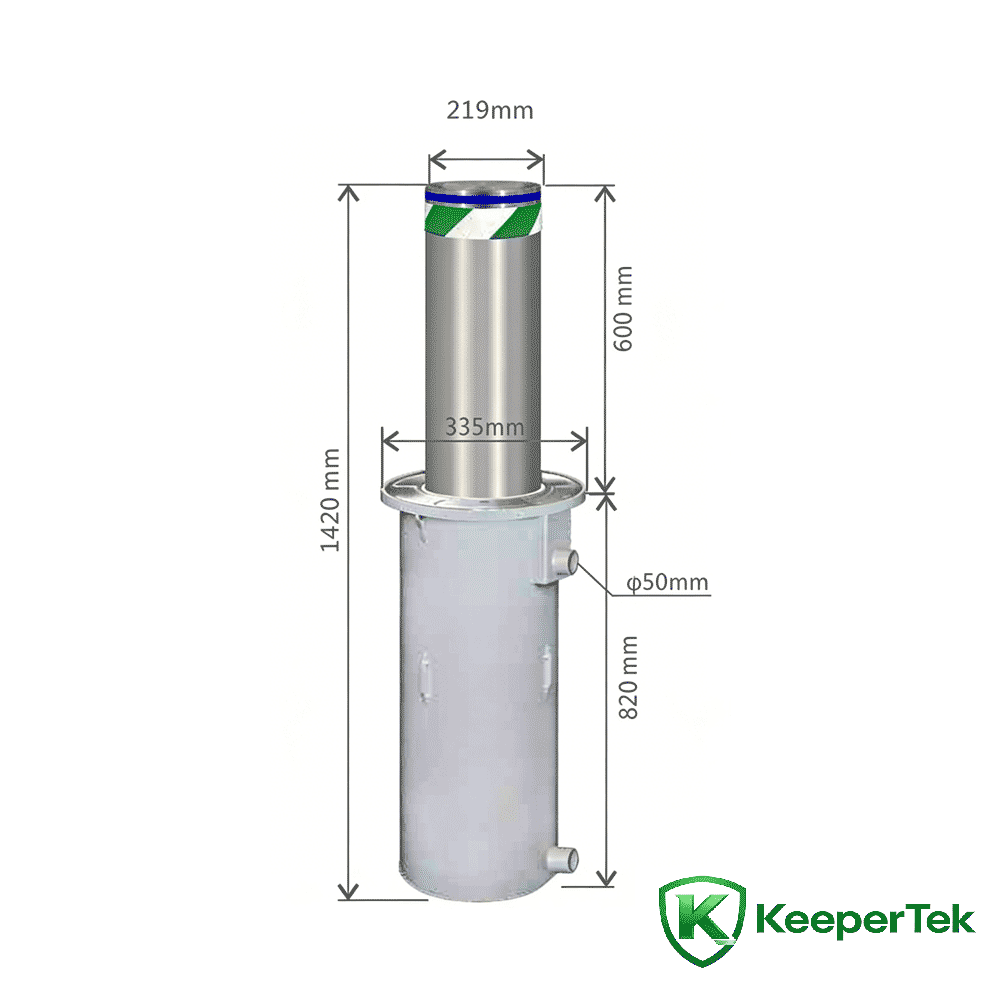

Silinda dhayamita: 219mm

Silinda kureba: 600mm

Silinda ukobvu: 6mm

Cylinder zvinhu: 304 simbi isina tsvina

Kusimudza kumhanya: 6S～13S

Yakamisikidzwa bhaketi zvirevo: dhayamita 395mm x kudzika 820mm

Mvura giredhi: IP68

Kushanda tembiricha: -35 ℃～75℃

Flange yakatarwa: 395mm × 10mm

Kugovera voltage: 24V

Simba: 200W

Yambiro zviratidzo: Ultra-yakakwirira kupenya inoratidzira firimu, mwenje we LED

Emergency function: Yakashongedzerwa neEPS yekukurumidzira magetsi uye imwe-bhatani kudzika

Kudzora maitiro: Bhokisi rekutonga rinogona kushandiswa kune imwe-kune-imwe kutonga / wired station control / wireless remote control

Akawedzera mabasa: rezinesi kucherechedzwa kweplate / moto alarm / yekuwana control system yekubatanidza

Features

DC 24V yakachena magetsi, yakachengeteka voltage;

Yakareruka wiring, mutsara mumwe chete wekutonga unodiwa kune bhokisi rekutonga uye seti yekusimudza makoramu, kuchengetedza waya mutengo.；

Inogona kubatanidzwa kune 24VUPS magetsi ekugadzirisa kudzora kusimudza kwayo；

Mvura isingapindi giredhi IP68, inogona kuramba ichishandiswa zvakajairwa kunyangwe yanyikwa mumvura:

Chimiro chakasimba uye chakasimba, simba guru rekutakura；

Uchishandisa 5CM yakafara inoratidzira firimu, iyo reflectivity inogona kusvika kupfuura 90%;

Optional yakakwirira-kupenya LED yambiro mwenje bar inogona kunyatso kusimudzira yambiro yehusiku.

Iyo flange yepaneru inotora anti-slip pateni dhizaini, uye iyo flange ukobvu inosarudzika 10mm/6mm;

Ukobvu hweflange kumusoro kwembiru ndeye 10mm/6mm;

Non-standard customization inogamuchirwa. Iyo dhayamita yese, ukobvu, kureba, kutaridzika, kumhanya, nezvimwe zvekoramu yekusimudza inogona kugadzirwa.

Configuration options

Kureba: kureba 400mm, kureba 800mm, kureba 1000mm, kureba 1200mm, kureba 1500mm

Ukobvu: 8mm ukobvu, 10mm ukobvu, 12mm ukobvu, 16mm ukobvu, 20mm ukobvu

Diameter: 168mm dhayamita, 273mm dhayamita, 325mm dhayamita, vamwe
