Anti-mhirizhonga inosimudza column

Yakasimbiswa hydraulic lifting column KT-DX01

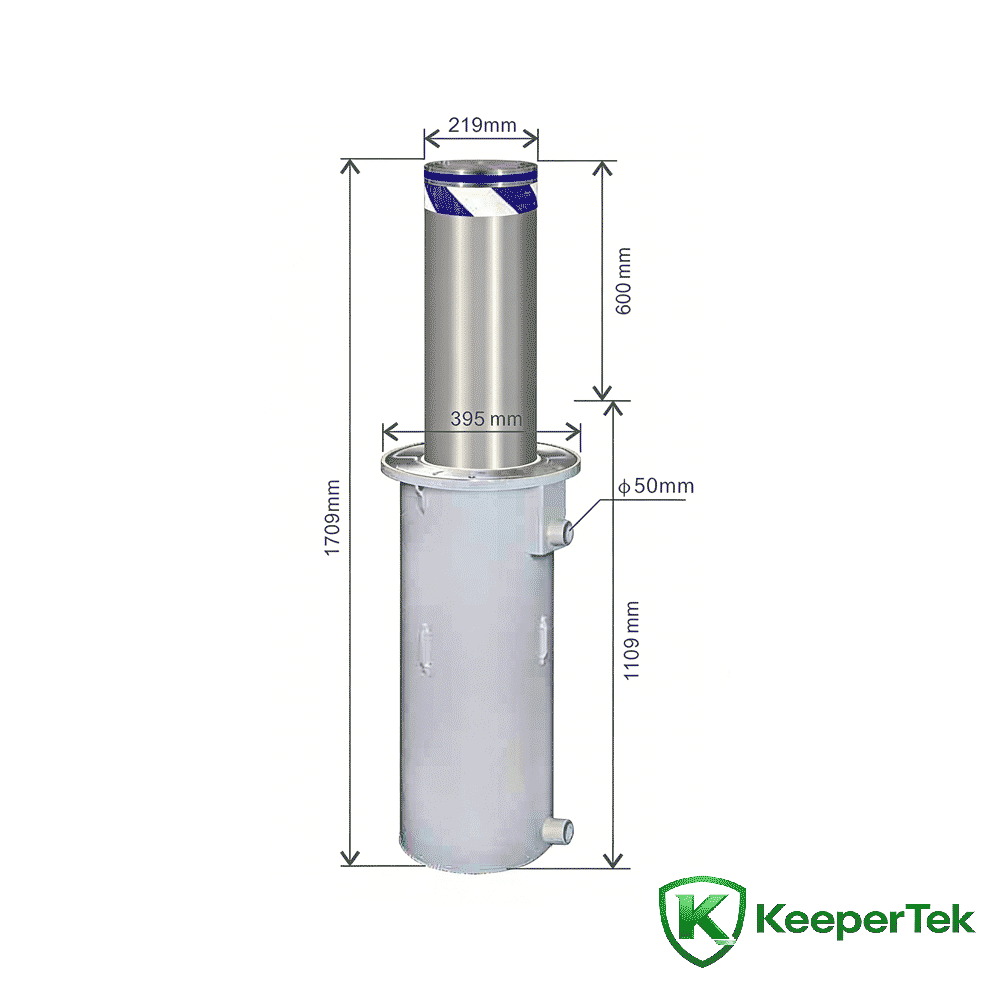

Technical parameters

Silinda dhayamita: 219mm

Silinda kureba: 600mm

Silinda ukobvu: 6mm

Kusimudza kumhanya: 2S ~ 4S

Nhamba yembiru dzinotungamirira: 4

Mvura giredhi: IP68

Cylinder zvinhu: 304 simbi isina tsvina

Kushanda tembiricha: -35°C~75°C

Voltage/simba: 220V/350W

Kudzora nzira: control box/wireless remote control

Chiratidzo cheyambiro: Ultra-yakakwirira kupenya kwe LED mwenje tambo

Flange yakatarwa: dhayamita 395mm x ukobvu 10mm

Emergency function: Yakashongedzerwa neEPS yekukurumidzira magetsi uye imwe-bhatani kudzika

Akawedzera mabasa: rezinesi plate kucherechedzwa / moto alarm yekuwana control system yekubatanidza

Yakaiswa zvirevo: kureba 395mmx yakafara 395mmx kudzika 1109mm

Features

Inogona kushandiswa zvakajairwa mushure mekumira nekufamba kwe100-ton mota.；

Mvura isingapindi giredhi IP68, inogona kuramba ichishandiswa zvakajairwa kunyangwe yanyikwa mumvura:

Chimiro chacho chakasimba uye chinogara kwenguva refu. Iyo tambo yekubuda uye yekuburitsa inogadzirwa ne4mm gobvu kabhoni simbi. Dhiramu rekunze rakagadzirwa ne 4 welded bars.；

Uchishandisa 5CM inopenya inoratidzira firimu, iyo reflectivity iri pamusoro pe90%;

Optional yakakwirira-kupenya LED yambiro mwenje bar inogona kunyatso kusimudzira yambiro yehusiku.

Iyo flange yepaneru inotora anti-slip pateni dhizaini, uye iyo flange ukobvu inosarudzika 10mm/6mm;

Ukobvu hweflange kumusoro kwekoramu ndeye 10mm/6mm, uye tsigiro isiri-yakajairwa inogamuchirwa kuti igadziriswe. Iyo dhayamita, ukobvu, kureba, kutaridzika, kumhanya, nezvimwe zvekoramu yekusimudza inogona kugadzirwa;

Iko kusimudza kunogona kudzorwa pamwe chete nemimwe michina yakaita serezinesi rezinesi rekuziva, zvivhariso magedhi, yekupinda kudzora, infrared, radar, pasi inonzwa, marambi emigwagwa, tidal nzira, moto alarm system, nezvimwe.；

Iyo Cloud platform management system inotsigirwa kudzora mbiru yekusimudza, uye mobile APP inogona kushandiswa kudzora kure kusimuka nekudonha kwekoramu yekusimudza.

Configuration options

Kureba: kureba 400mm, kureba 800mm, kureba 1000mm, kureba 1200mm, kureba 1500mm

Ukobvu: 8mm ukobvu, 10mm ukobvu, 12mm ukobvu, 16mm ukobvu, 20mm ukobvu

Diameter: 168mm dhayamita, 273mm dhayamita, 325mm dhayamita, vamwe
