RFID yekupaka system

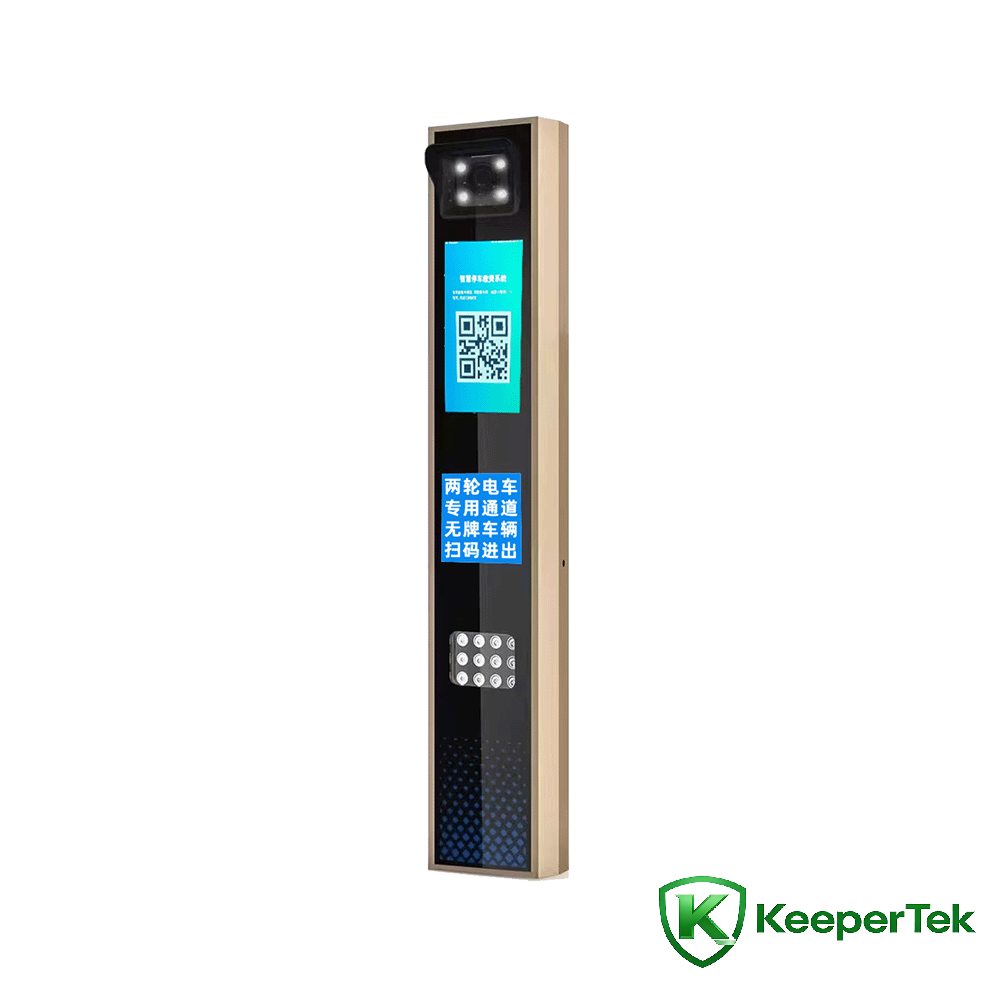

UHF RFID uye rezinesi plate yekuzivikanwa yakabatanidzwa muchina/LCD skrini KT-ZYSB36

UHF RFID kuzivikanwa tekinoroji paramita

Kadhi rekuverenga-tag protocol: ISO18000-6B, EPC Kirasi1 Gen2 (ISO18000-6C)

Antenna interface: yakabatanidzwa antenna, yakatwasuka polarization

RF bhendi: UHF, inotsigira China (920-925MHz), sarudzo Americas (902-928MHz) / Europe (865-868MHz) / mamwe ma frequency mabhendi enyika

RF modhi: yakatarwa frequency modhi / yakakura spectrum frequency hopping

Identification range: kusvika pamamita matatu, zvichienderana nemamiriro ekushandiswa uye tag yemagetsi

RF yakabuda: isingasviki 32dBm, inoenderana neredhiyo manejimendi mirau

Interface rutsigiro: MQTT kutaurirana, 485 kutaurirana, Wiegand kutaurirana

TCP/IP kutaurirana: 1 chiteshi

485 kutaurirana: 1 nzira

Wiegand kutaurirana: 1 chiteshi, kupinza kana kubuda kuburikidza nejumper

Chiratidzo chekuvhura gedhi: 2 chiteshi

Zvishandiso zvekutsigira: magedhi ekuvharira, magonhi ekushambadza, masuwo ekupfuura, telescopic mikova, roller shutters, anotsvedza magonhi, makiyi egonhi, nezvimwe.

IO kupinza: 1 chiteshi

Ratidza: 10.1-inch LCD kuratidza (inokwidziridzwa kune yakakura skrini)

Kutepfenyura nenzwi: rutsigiro

Kushanda magetsi: 12V DC

Kushanda ikozvino: 500mA

Kushanda tembiricha: -30～70℃

Kushanda humidity: 15 ~ 95%

Chigadzirwa saizi: 1385 * 245 * 120MM

Rezinesi ndiro yekuzivikanwa kamera tekinoroji paramita

Kuzivikanwa algorithm

  Chiyero chekutora: ≥99.9%

  Kuzivikanwa mwero: ≥99.8%

  Kumhanya kunochinjika: 0-40 km/h

  Marezenisi eplateti yekucherekedza marudzi: akajairwa mahwendefa eblue, imwe uye yakapetwa-yero mahwendefa, simba idzva, imwe chete uye mbiri-yepamusoro mota dzemapurisa, mapurisa matsva ane zvombo, mahwendefa emauto ega uye maviri, maembassy matsva, mota dzevarairidzi, Hong Kong neMacao mainland rezinesi mahwendefa, marezenisi echimbichimbi, ndege yendege, marezenisi akasarudzika, nezvimwe.

  Rezinesi ndiro yekuziva maficha: rezinesi pepa nhamba, ruvara, hupamhi, chivimbo

  License plate inopesana nekunyepedzera: inotsigira abnormal rezinesi ndiro (kutora mifananidzo uye kudhinda nenharembozha) maalarm, chiyero chechokwadi 9≥5%

  Mota isina rezenisi inokonzeresa: Inotsigira isina rezenisi yemotokari vhidhiyo inokonzeresa, nekurongeka kwe95%

  Kuzivikanwa kwemhando yemota: Inotsigira 7 mota dzemhando yekuzivikanwa (mota, SUVs, MPVs, mabhazi, mabhazi makuru, minivan, hombe

rori), kururama 98%

  License plate whitelist: Inotsigira chaiyo uye nehungwaru fuzzy kuenzanisa yewhitelist rezinesi rezinesi rezinesi mitemo

  Intelligent calibration: Inotsigira hungwaru kuenzanisa kwerezinesi plate nhamba, rezinesi rezinesi rudzi uye ruvara nemazvo kana nenzira yemusango.

imaging

  Kurongeka kwekutanga: Yakamisikidzwa VZ yakangwara ISP algorithm, yakangwara optimization ye dimming algorithm, hungwaru kuchinjika kune zvakaomarara.

  Basic parameters (kupenya/kusiyanisa/kuzara/kupinza/kupinza mufananidzo/kuratidzwa nguva, nezvimwewo) zvinogona kusetwa mumwe nemumwe

  Vhidhiyo compression mwero: H.264/H.265

  Kugadziriswa kwevhidhiyo: 640*360, 704*576, 1280*720, 1920*1080, 2960*1664

  Kutsikirira goho bit mwero: 512Kbps ~ 5000Kbps

  Frame rate: 1 ~ 25 mafuremu, default 25 mafuremu

kutaurirana

  Kukurukurirana protocol: SDK, ONVIF, HTTP, MQTT, RTSP, TCP/IP, UDP, RS485, NTP

  FTP upload mapikicha: Inotsigirwa, isa mifananidzo yakatorwa kune server kuburikidza neFTP

  VPN Virtual Yakavanzika Network: Inotsigira kugadzwa kweyakavanzika yakavanzika network kuburikidza neOpenVPN

  HTTP kusunda: Inotsigirwa, inotsigira kurodha mibairo yekuzivikanwa uye kunze kweinternet retransmission

  MQTT push: Inotsigirwa, inotsigira kurodha mibairo yekuzivikanwa uye kutapurirana pasina pamhepo

  Dynamic domain name: Inotsigira docking ine 3322 ine simba rezita rezita sevhisi

  UPNP port mepu: rutsigiro, otomatiki mepu HTTP/RSTP yekutaurirana chiteshi

Networking

  Offline networking: hapana komputa inotambira kana sevha inodiwa, uye mashandiro etiweki anoitwa otomatiki pakati pemakamera

  Parking lot management: inotsigira kumisikidzwa kweakawanda nzvimbo dzekupaka uye nzvimbo-yakavakirwa manejimendi emakamera akawanda

  Whitelist: Batira pamwe nemaitiro ekusangana nemotokari hierarchical management

  Kubata manejimendi: matatu anobatsira makamera (kusanganisira rezinesi rezinesi makamera uye nzira yekutarisa kamera) inogona kuwedzerwa kune imwecheteyo mudziyo mukuru.

maneja

  Management protocol: PC mobile management, PC manejimendi maturusi, SDK yekuvandudza kit, HTTP kusunda

  Cloud manejimendi: Tonga kure kure kamera imwe, yepakati tonga akawanda makamera kuburikidza nemaakaundi, uye inotsigira gore SDK kusimudzira manejimendi chikuva.

imaging

  Sensor: 5MP yakakwira kuita CIS

  Resolution: 2960(H) x 1664(V)

  Kupenya kwakaderera: 0.1LUX ruvara (chena mwenje)

  Yemagetsi shutter: 0-1ms kana yakagadzirirwa

  Lens: Yakajairwa 6mm yakagadzika yekutarisa lens

  Interface: M12

Mifananidzo zviratidzo

  Zvigadziriso zvemufananidzo: kupenya, kusiyanisa, saturation, mufananidzo flip, nguva yekuratidzwa, nezvimwe.

  Kuderedza ruzha: inotsigira 2D / 3D kuderedza ruzha

  Wide dynamic range: inotsigirwa

Interface bhatani

  Network interface: 1 chiteshi 10/100Mbps inogadzirisa RJ45 chiteshi

  IO yakabuda: 2 chiteshi

  IO kupinza: 2 chiteshi

  RS485: 1 nzira

  TF kadhi slot: 1 TF kadhi slot, inotsigira huwandu hwepamusoro hwe256G

  Reset bhatani: 1 chiteshi Reset bhatani

System light

  Chiedza cheSystem: Chiyero chechimiro chemwenje chinopenya kuratidza kuti sisitimu iri kushanda zvakajairika. Kana ichigara yakabatidzwa kana kuvharwa, inoratidza kuti iri kutanga kana kuti yakashata. Kana mwenje wechimiro chemudziyo ukapenya, zvinoratidza kuti sisitimu iri kushanda zvakajairika. Kana ichigara yakabatidzwa kana kuvharwa, inoratidza kuti iri kutanga kana kuti haina kujairika.

kuvimbika indekisi

  Tembiricha: Kushanda tembiricha: -30 ℃ ~ 70℃

  Static magetsi: kubata 6KV, mhepo 8KV；

  Kuvhiya: 10/70 zvakajairika muoti 4KV, musiyano muoti 2KV 8/20 zvakajairika muoti 2KV, musiyano muoti 2KV

  Anti-vibration: chiyero chenyika

  Simba rekushandisa: 12V DC

  Simba rekushandisa Simba rekushandisa ≤3W

  Dziviriro: IP65:-
