gedhi rekukwirira rakazara

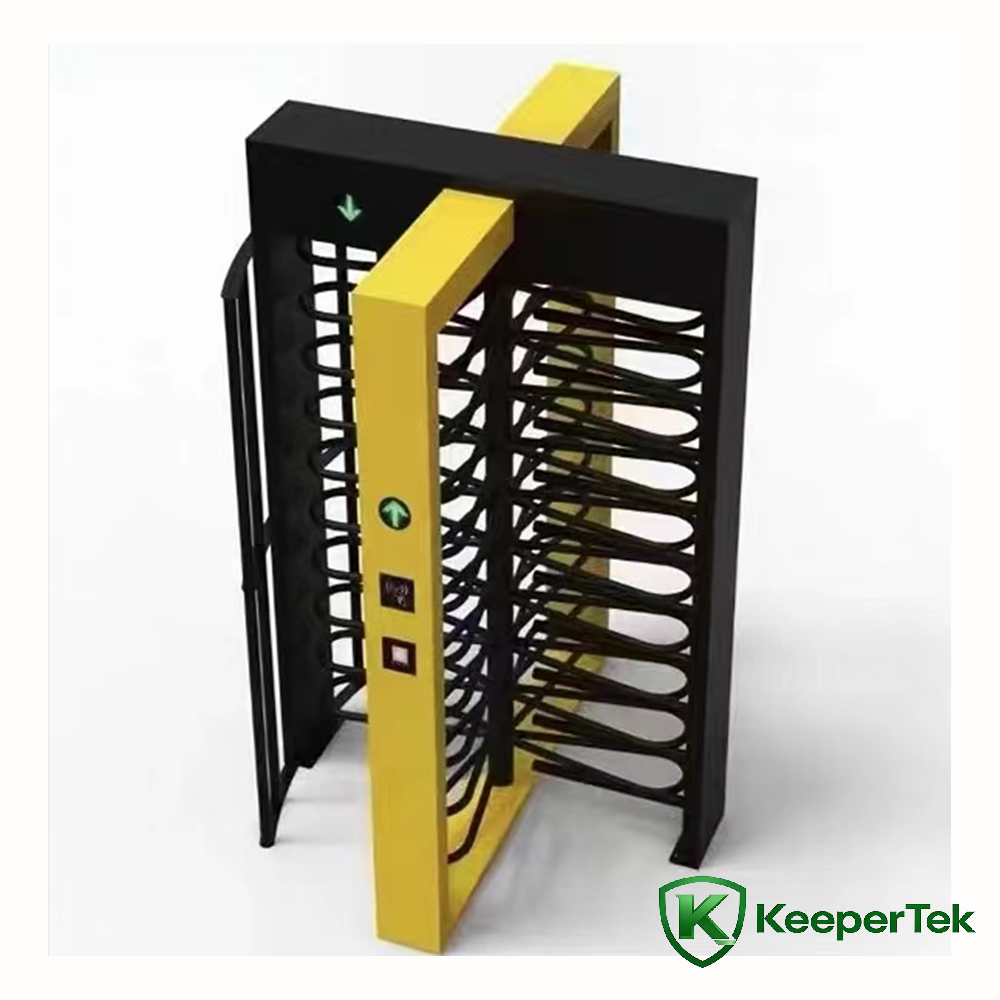

Painted full height gedhi repiri gonhi KT-JSDQG03

Technical parameters

Kuumbwa kwegedhi: chassis, kufamba, control panel uye magetsi

Kutendeuka nzira yekutendeuka: imwe-nzira/mbiri-nzira

Movement drive mode: DC brushless mota

Nguva yekuvhura gedhi: 0.5 masekondi

Simba rekuisa: AC220V±10%, 50Hz ± 4% inoshandurwa otomatiki kuita gedhi rekushandisa voltage DC24V, DC12V

Input interface: Dry yekubata chiratidzo, 12V nhanho kana 12V pulse chiratidzo ine pulse wide ≥100ms

Kukurukurirana interface: Rs485 (chinhambwe ≤1200 metres), TCP/IP (zvichida)

Baffle zvinhu: Stainless simbi

Infrared sensor: hapana

Kushanda tembiricha: -10 ℃ ~ 60 ℃, hama humidity 5% ~ 95%, hapana condensation

Zvishandiso zvekunze zvinogona kubatana: IC kadhi muverengi, ID kadhi kuverenga, kodhi yekuongorora module, kumeso module, zvigunwe module. (Zvishandiso zvekunze zvinoda kugadzirwa)

Nzvimbo yekushanda: mukati, kunze

Hupenyu hwesevhisi: anopfuura mamirioni matatu nguva yekuenderera kuvhura nekuvhara

Chassis size: 1200×200×980MM
