Face recognition machine

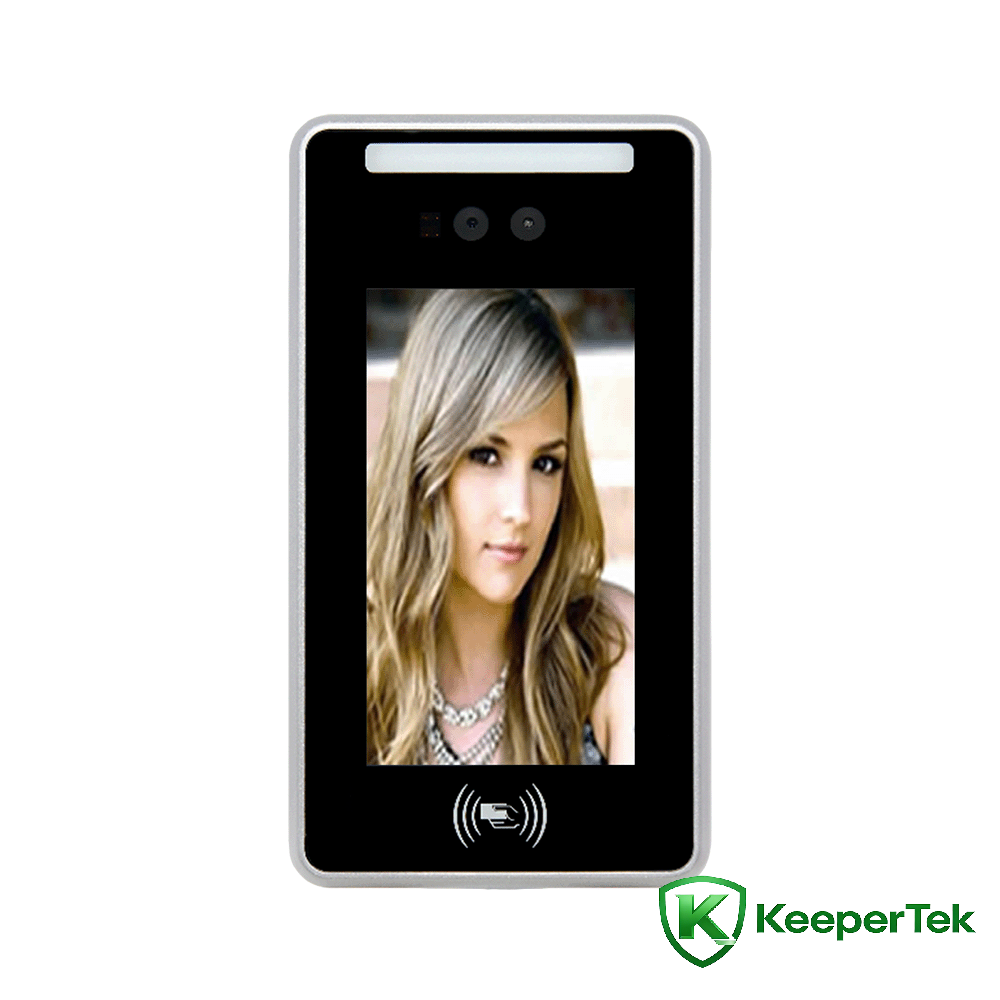

7inch vanhu Face recognition kadhi swiping all-in-one machine KT-FR007

Technical parameters

Processor: Dual-Core ARM Cortex-A7, @1.0GHz

Operating system: Linux inoshanda system

Kuchengetedza: 8GB EMMC

Kamera: Binocular, 2.1 miriyoni inoshanda pixels, 1920 * 1080

Kufungidzira mudziyo: 1/2.8" Progressive Scan CMOS

Lenzi: 6mm

Kadhi swiping module: 13.56MHz, inotsigira Mifare S50, S70 makadhi, ultralinght makadhi, NTAG makadhi, DESFire D21, D41, D81, asiri-anobata CPU makadhi.

WIFI module: IEEE 802.11b/g/n chiyero, inotsigira 2.4GHz frequency band, kumhanya mhanya 1Mbps-150Mbps

Bluetooth module: 8DPSK, π/4DQPSK, GFSK, kumhanya siyana 1Mbps-2, 3Mbps

Mutauri: zvakajairika, zvemukati zvekutamba inzwi zvinogona kugadziridzwa

Kuzivikanwa kureba: 1.2 ~ 2.2 metres, kona inogadziriswa

Kuzivikanwa kureba: 0.5 ~ 1.5 metres, chinja zvichienderana nelenzi

Face angle: 30 madhigirii kuruboshwe uye kurudyi, 30 madhigirii kumusoro uye pasi

Kuzivikanwa nguva: isingasviki 0.5 masekondi

Kuchengetedza kugona: 60,000 snapshot zvinyorwa

Kugona kwechiso: 20,000

Mhando dzemakadhi anogona kutsvaira: 13.56MHz, ID kadhi serial nhamba, Mifare, NFC (inosarudzika yakavakirwa-mukati ID kadhi kuverenga)

Kuchinja kunobuda: 1 switching inobuda, mamwe maGPIO ports anogona kugadzirwa

USB interface: 1 USB interface semudziyo

Network interface: 1 RJ45 10M/100M adaptive Ethernet port, customizable Gigabit network port

Wiegand interface: 1 Wiegand interface inobuda, 1 Wiegand interface yekupinda

Kukurukurirana interface: 1 RS485 interface

Kamera: Binocular kamera, chiedza chinooneka uye pedyo infrared, inotsigira mhenyu kuonekwa muviri

Mapikisheni anoshanda: 2.1 miriyoni inoshanda pixels, 1920 * 1080

Kupenya kudiki: ruvara 0.01Lux @F1.2 (ICR); dema nechena 0.001Lux @F1.2 (ICR)

Chiratidzo-ku-ruzha reshiyo: ≥50db (AGC KUDZIMWA)

Kushanda tembiricha: -30 ℃ - +60℃

Kushanda humidity: 0 ~ 90% hunyoro hunyoro, hapana condensation

Equipment simba: 10W (MAX)

Chiyero chekupfapfaidza munyu: Rp6 kana pamusoro

Antistatic: kubata ± 6KV, mhepo ± 8KV

Simba rekushandisa: DC12V/2A

Anti-mhirizhonga level: IK06

Chiyero chekudzivirira: IP66

Chidzitiro chezvimiro: 7-inch yakakwirira-tsanangudzo IPS skrini

Zvishandiso saizi: 252 (kureba) * 136 (hupamhi) * 26 (ukobvu) mm

Features

Tsigira binocular mhenyu kuona muviri

Inotsigira kutariswa kwechiso uye kuratidzwa kwevanhu vanofamba munzvimbo dzakasimba dzekudzokera shure

Yakasarudzika yekuzivikanwa kumeso algorithm, inonyatso ziva zviso, nguva yekuziva kumeso iri pasi pe0.5s.

Yakavakwa-mumba CPU

Uchishandisa LINUX inoshanda sisitimu, iyo system yakagadzikana

Zvinoreva kumhanya nguva pakati pekutadza MTBF＞50000h

Inotsigira anosvika makumi maviri,000+ ekuenzanisa kwechiso maraibhurari uye makumi matanhatu ezviuru marekodhi ekuzivikanwa.

Rich interface protocol, inotsigira TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocol pasi peWindows/Linux nemamwe mapuratifomu.

Kushanda tembiricha: -30 ℃-60℃

IP66 isingapinde mvura uye isina guruva

Host yakavakirwa-mukati IC kadhi swiping module

Yakapfuma hardware interfaces (I/O, WG26, WG34, RJ45, USB, RS485)

7-inch IPS yakazara-inoona HD kuratidza, hapana kuzora kana kunonoka mumifananidzo
